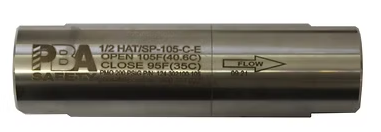

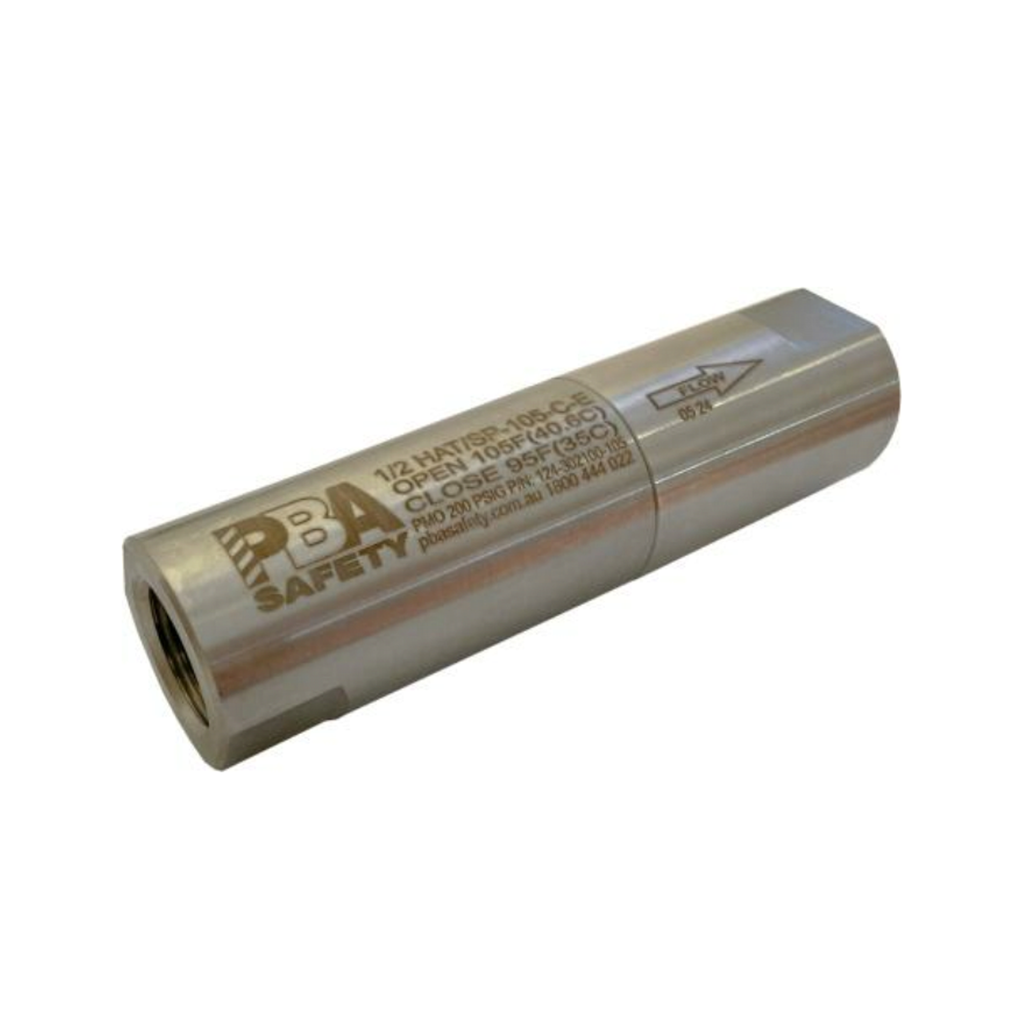

SE HAT/SP - Scald Protection Valve

Scald Protection Valve for Emergency Safety Showers

BENEFITS

HAT/SP temperatures up to 105°F meet ANSI Z358.1 and AS 4775 standards.

• Protects safety showers from over-temperature conditions, keeping personnel safe
• Self-operating, no power or signal required
• Two wrench flats for easy installation
• Discharges the minimum amount of water required


DESIGN FEATURES

Exclusive Thermoloid thermal actuator

• Stainless steel body, fittings, spring, and plug

• Compact, low-mass - fast response

• Corrosion resistant - long service life

• Ram type plug for reliable and tight shutoff

• Installs in any orientation

The valve must be fitted with a strainer kit to stop debris from entering the valve.
Failure to so will void warranty (#20 mesh strainer is recommended).

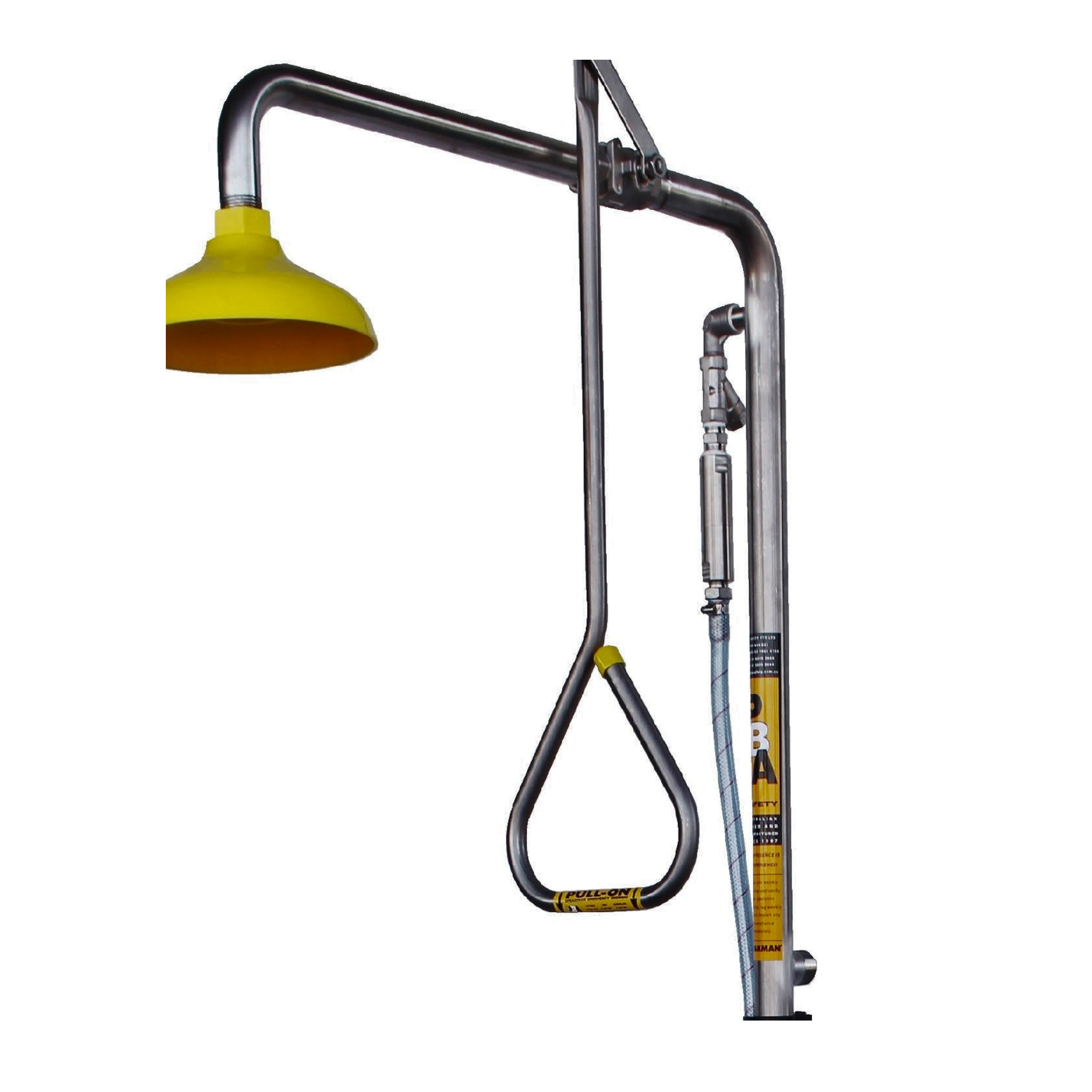

Suitable for Speakman Safety Shower models :- SE105, SE106, SE603, SE607, SE612,  SE675, SE679, SE693, SE685
