Rollover Cradle

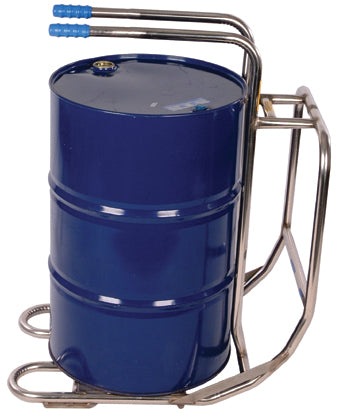

The DCR02 Rollover Cradle is designed to assist operators to turn and place drums and barrels in a horizontal rack. The cradle transfers the drum from vertical to horizontal easily and safely.

Operators would traditionally push the drum onto their side. This is not a safe practice and that is why this product was developed to allow compliance with the Manual Handling Regulations.

The drum or barrel is loaded onto the footplate using either the DTC01 Universal Drum Trolley, a depalletiser unit or forklift truck.
Once the drum is horizontal it can be lifted out using either a stacker or forklift and placed in the rack.

This handling equipment is manufactured in full stainless steel, and customers are offered the option of ATEX certification for Zone 1 explosive areas. These features have made the unit a popular choice for use in the food, chemical and pharmaceutical industries.

Technical Specifications

• Maximum SWL 300kg
• Overall Width 600mm
• Overall Length 1000mm
• Overall Height 980mm
• Maximum Input Force 15kg
