Description

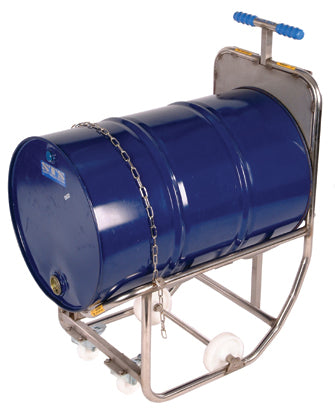

The STS Cradles offer a safe effortless way to turn 200 litre drums and barrels from the vertical to the horizontal. The DCR01 Dispensing Cradle is ideal for decanting 200 litre drums and barrels; braked castors and handle storage in the base prevents the cradle from tipping. There is an option to have rollers fitted, which allows the drum to be turned around when horizontal.
The drum or barrel is loaded onto the footplate using the DTC01 Universal Drum Trolley. The drum cradle requires an operator input of less than 25 kilos well within the Manual Handling Regulations. The unique geometry of these cradles is what makes them easy to use. They are not like any cradle you have used before.
The equipment is manufactured wholly in stainless steel and is particularly suitable for the food, chemical and pharmaceutical industries, with the option to make the units in an ATEX compliant format increasingly in demand.
Technical Specifications
- Maximum SWL 300kg
- Overall Width 600mm
- Overall Length 870mm
- Maximum Input Force 25kg
- Dispensing Height 350mm
Think of the dollars saved by avoiding back injuries as a result of this easy to use equipment.
Below is a video showing how to use the Drum Dispensing Cradle and the Universal Drum Trolley.
